Databases in Ethereum Nodes
ft. ErigonDB

by M Sudeep Kumar

Erigon and Archive node

  • different kinds of ethereum nodes - validators, archive nodes, minimal nodes
  • Erigon specialization in archive nodes
    • node size: 2TB archive (8TB including commitment history)
    • sync time: hours instead of days
    • RPC performance: favorite choice of API/RPC providers and indexers

what data has to be stored?
access patterns?
other special requirements?

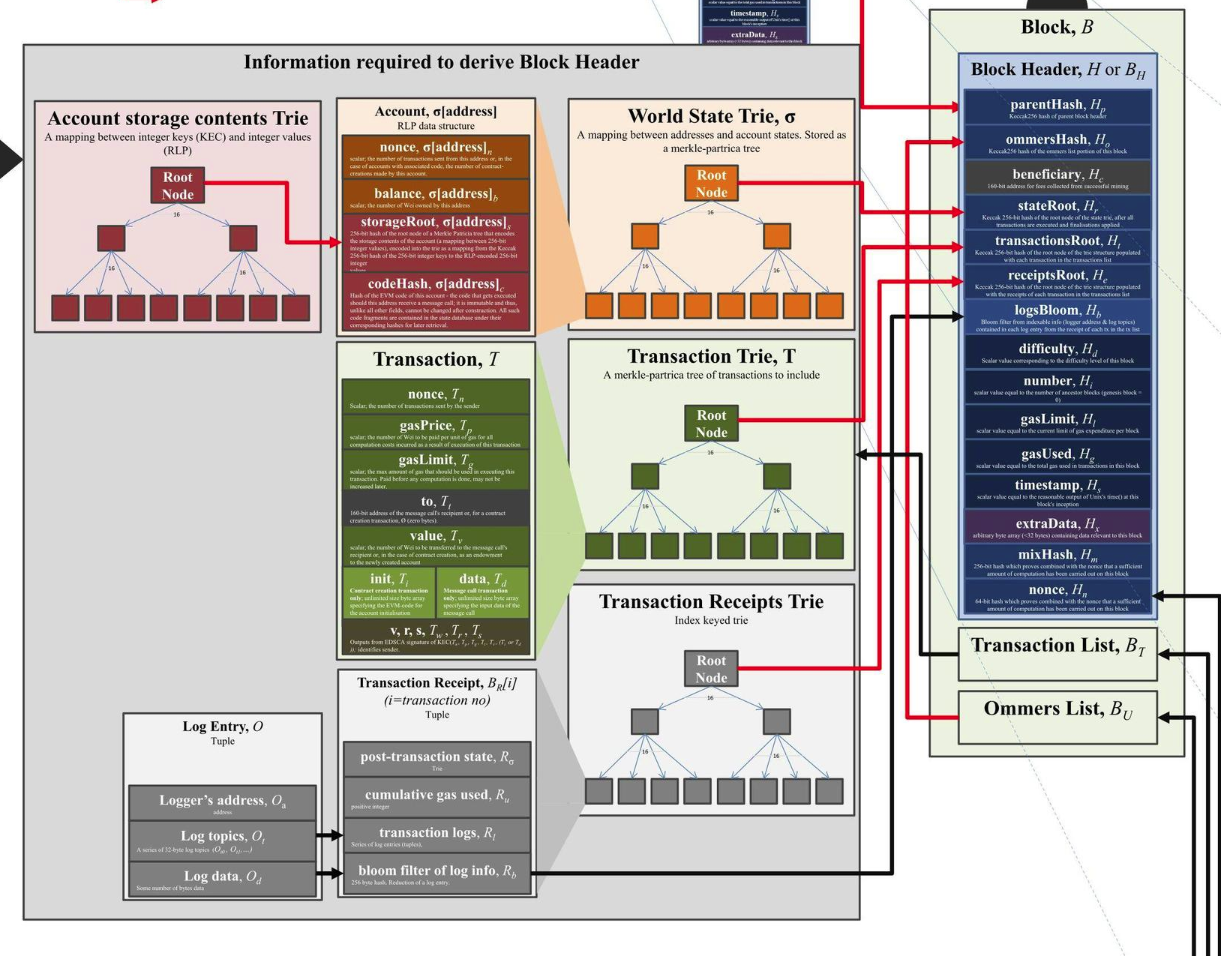

Blocks and Transactions

data and access patterns: RPC

  • GetBlock(blockHash/blockNumber)
  • GetTransactionsOfBlock(blockHash/blockNumber)
  • GetTransaction(txHash)

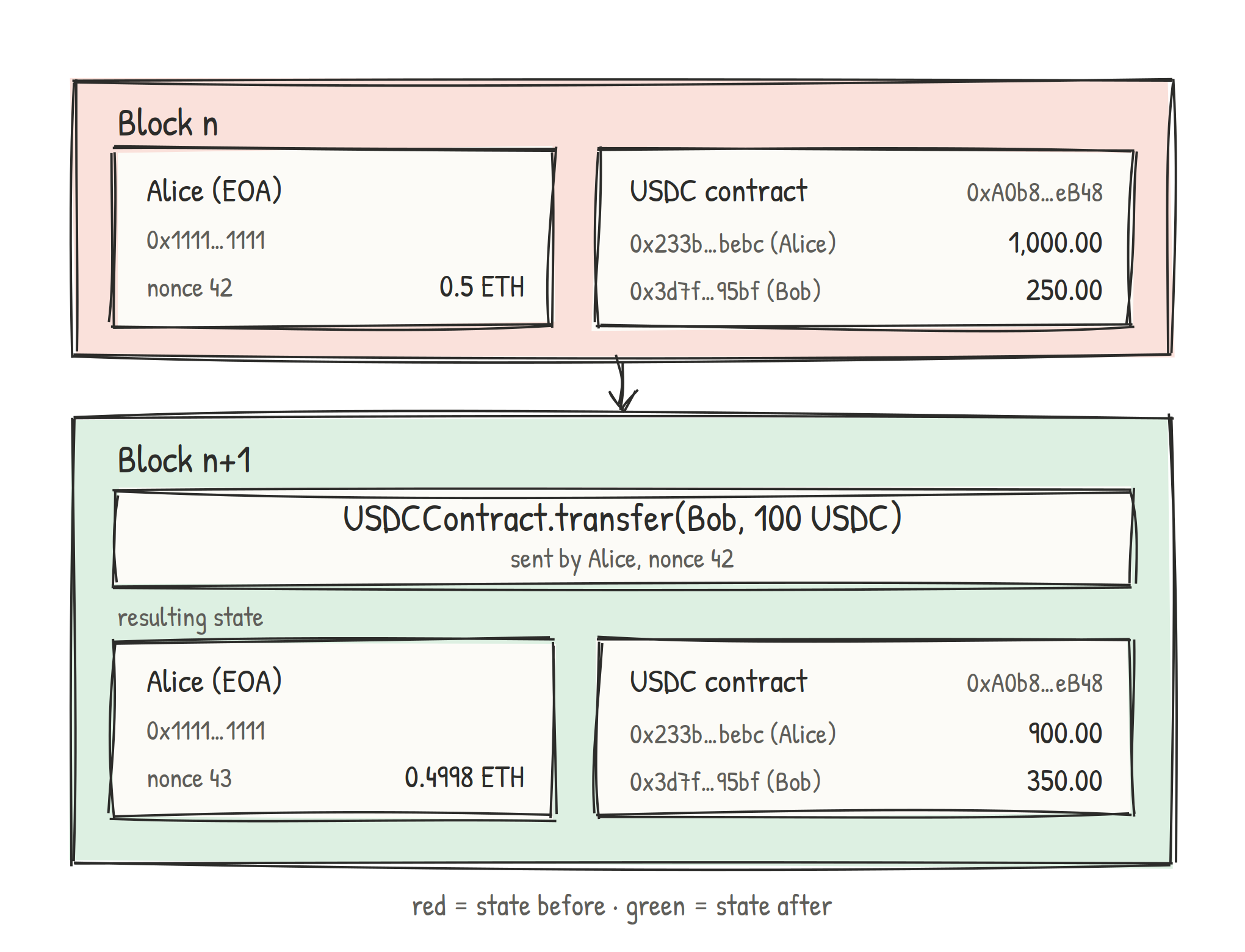

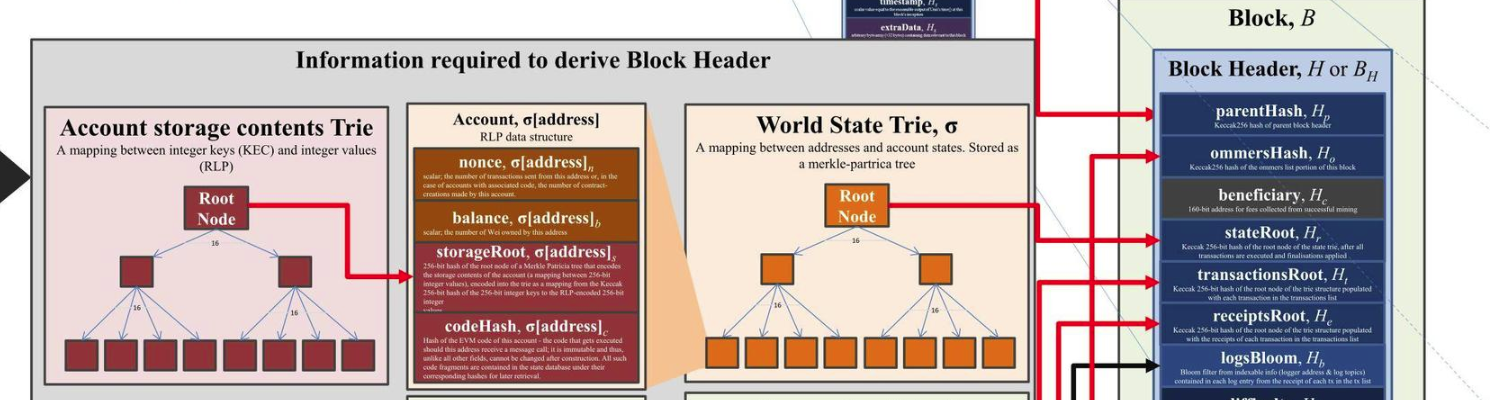

accounts and storage

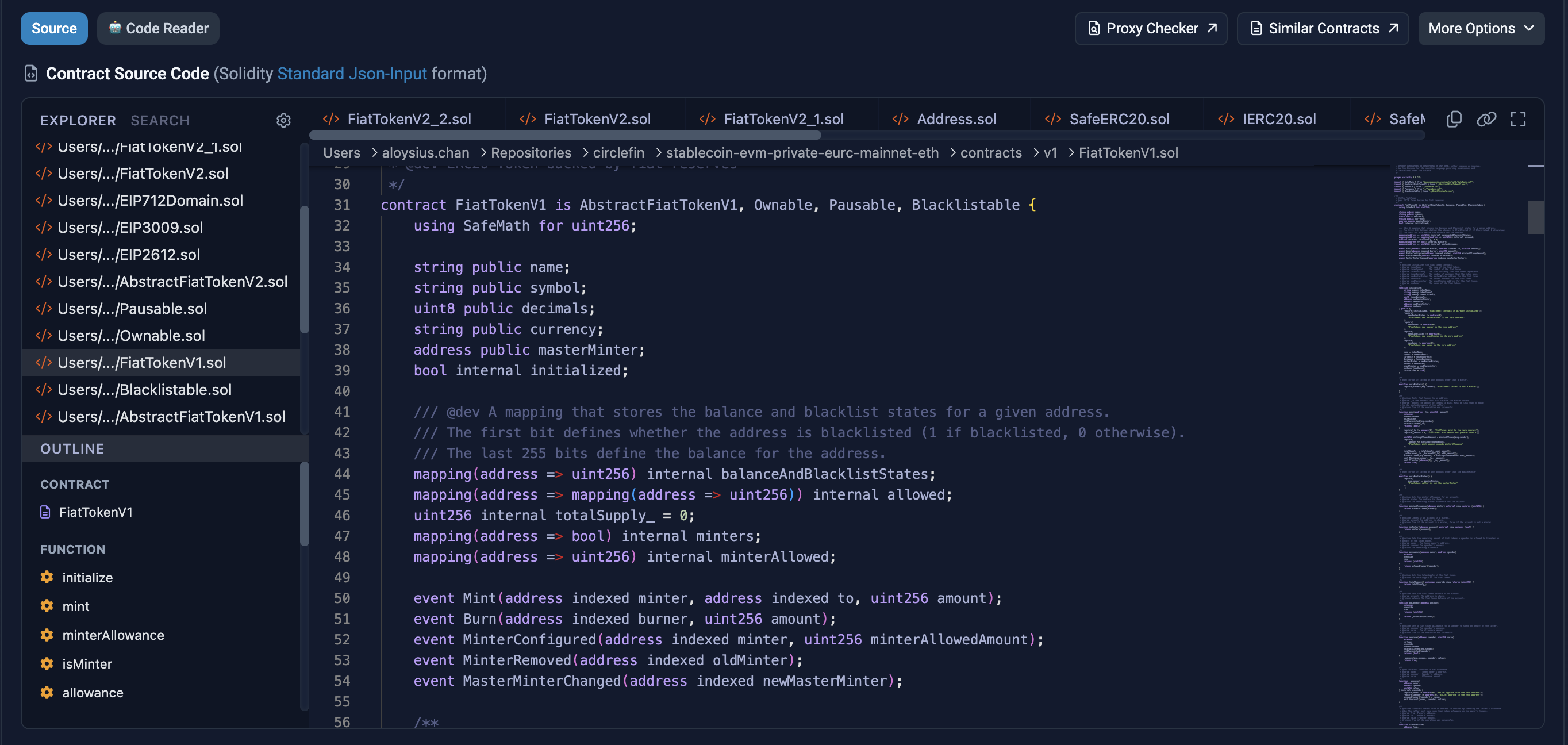

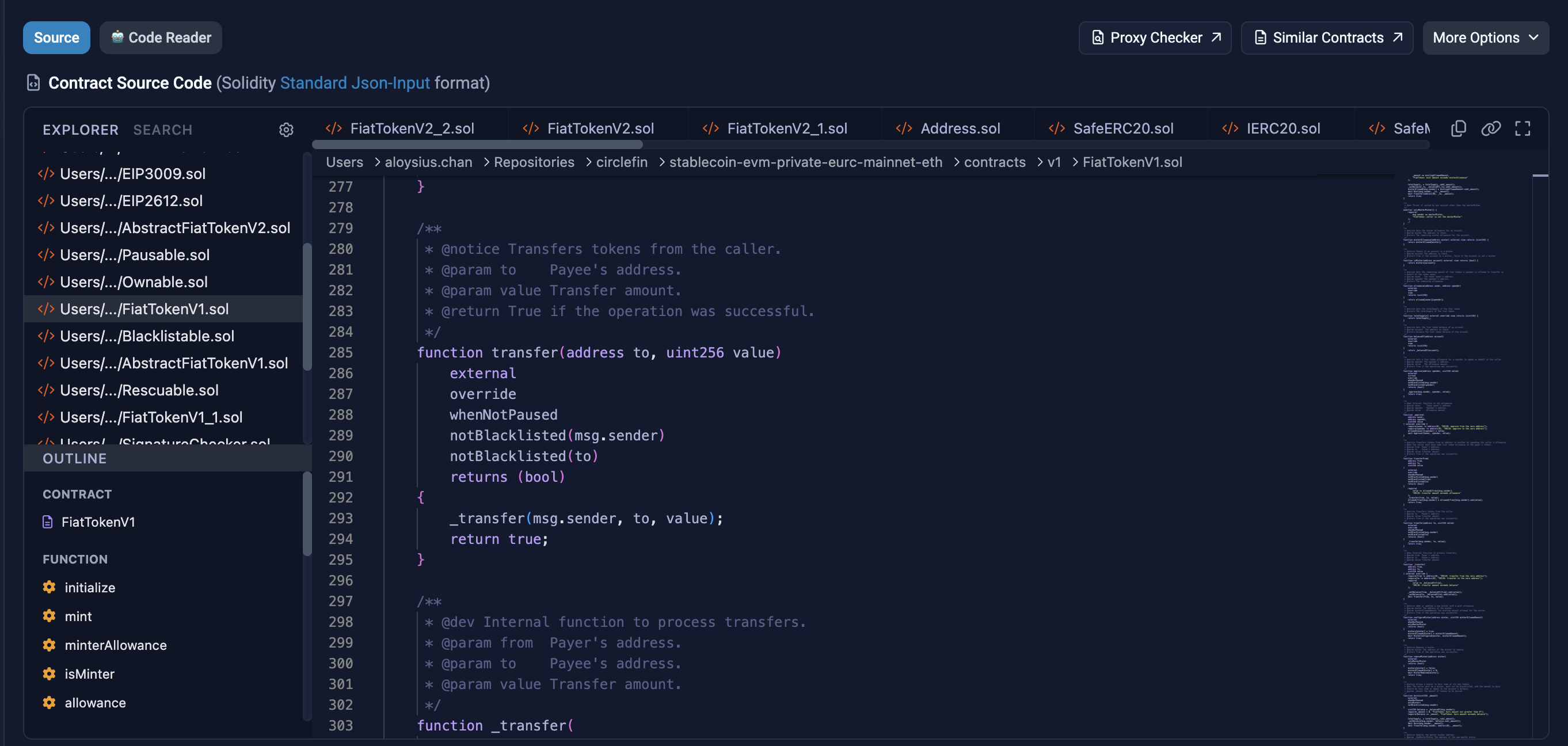

accounts: Smart Contract


accounts: Smart Contract


data and access patterns

latest state

  • GetAccount(address) -> Account
  • GetStorageForAccount(address) -> []<StorageSlot, Value>
  • GetStorageValue(address, StorageSlot) -> Value

blocks and transactions queries

  • GetBlock(blockHash/blockNumber) -> Block
  • GetTransactionsOfBlock(blockHash/blockNumber) -> []Transaction
  • GetTransaction(txHash) -> Transaction

historical state

data and access patterns

historical state

  • GetAccount(address, blocknumber) -> Account
  • GetStorageForAccount(address, blocknumber) -> []<StorageSlot, Value>
  • GetStorageValue(address, StorageSlot, blocknumber) -> Value

latest state

  • special case of historical state, with blocknumber = "latest"

blocks and transactions queries

data and access patterns

  • temporal dimension of stored data

    • value of account/storage as of block Q

  • blocks and transactions are relatively simpler

data and access patterns

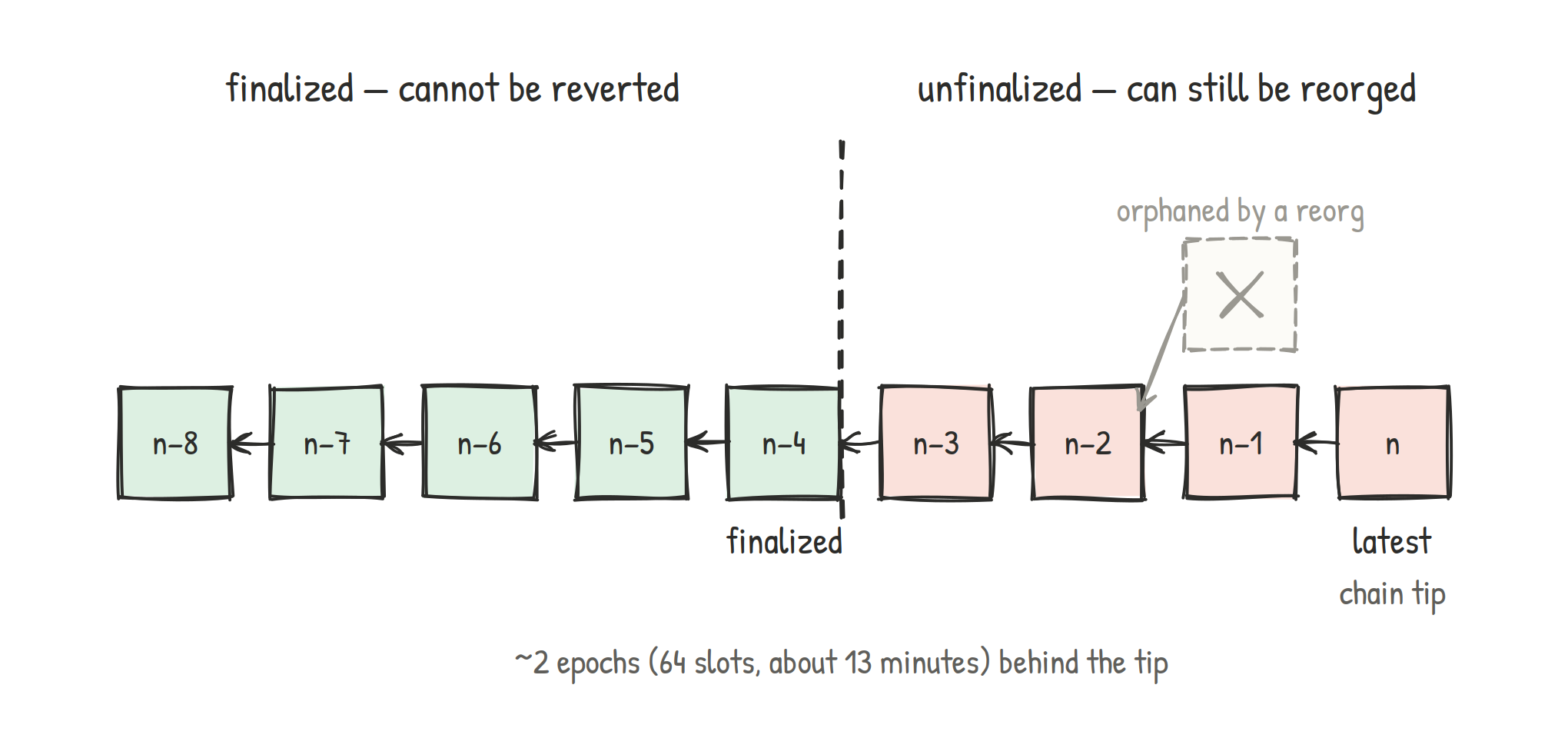

(un)finalized and chaintip performance

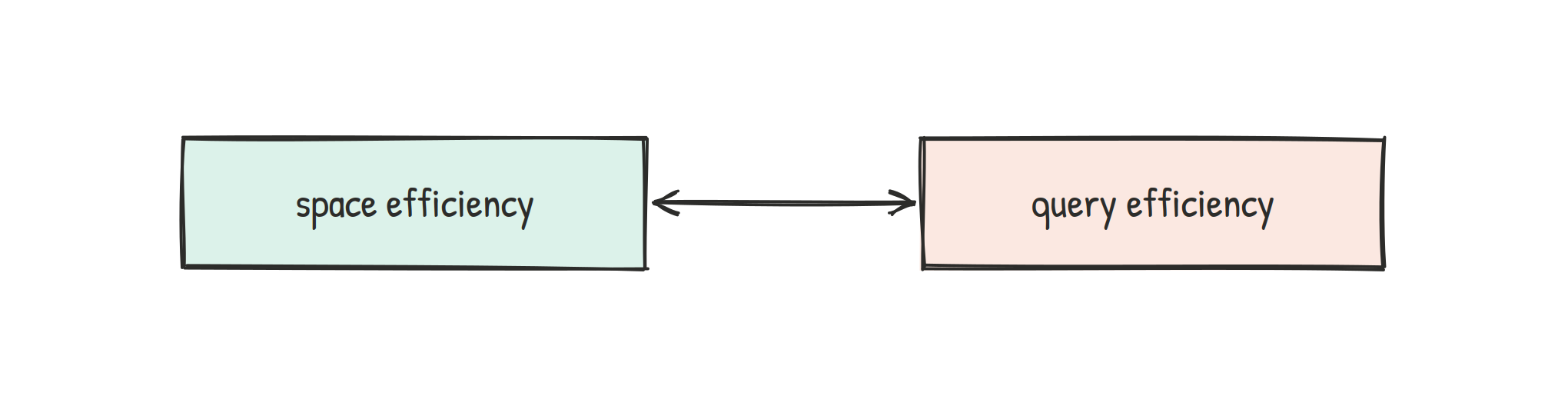

database dilemma: finalized blocks

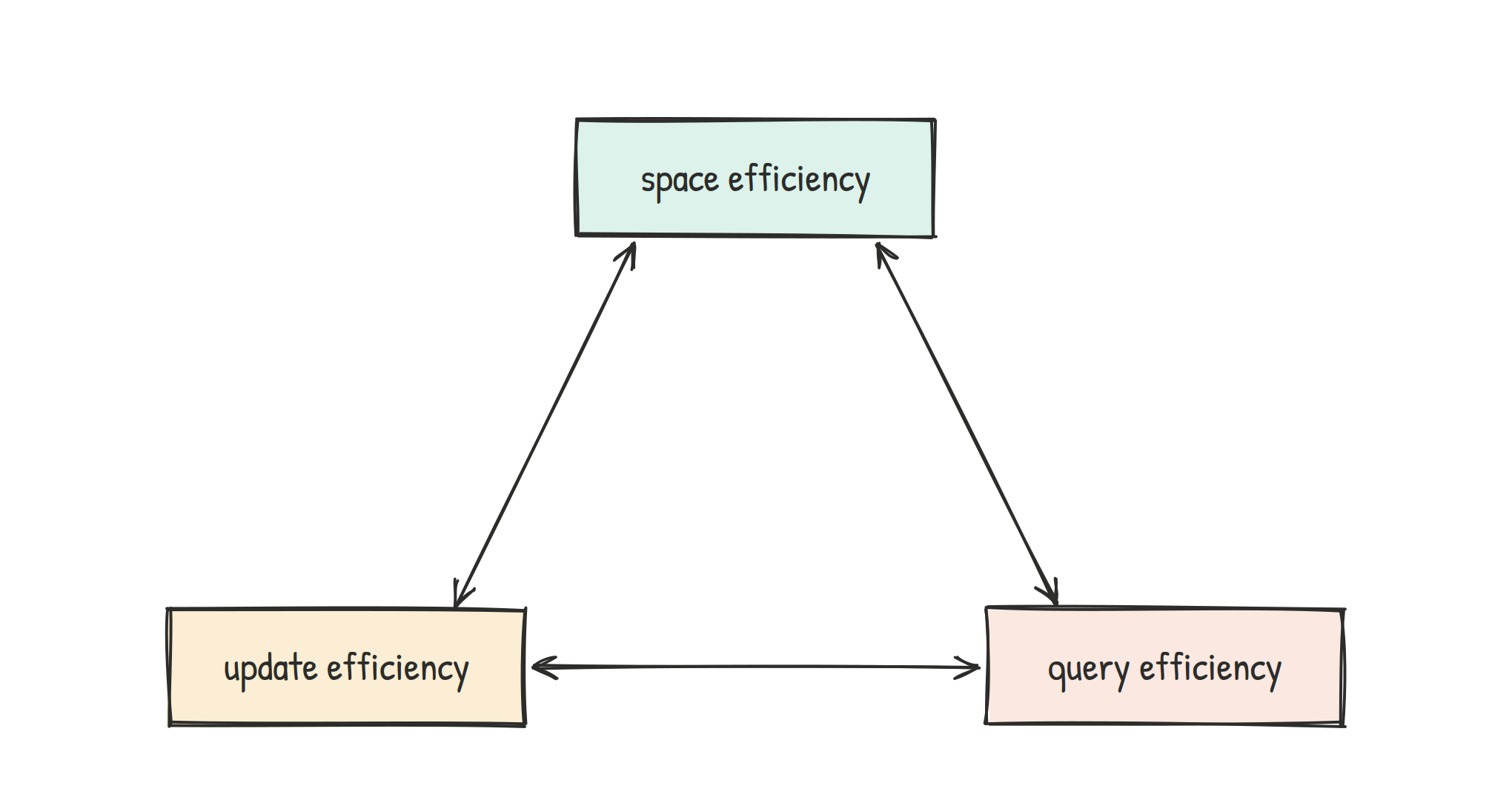

database trilemma: unfinalized blocks

properties

  • trilemma vs dilemma
  • temporality: historical vs latest state
  • chain tip performance
  • distribution
  • SSD/HDD tiering

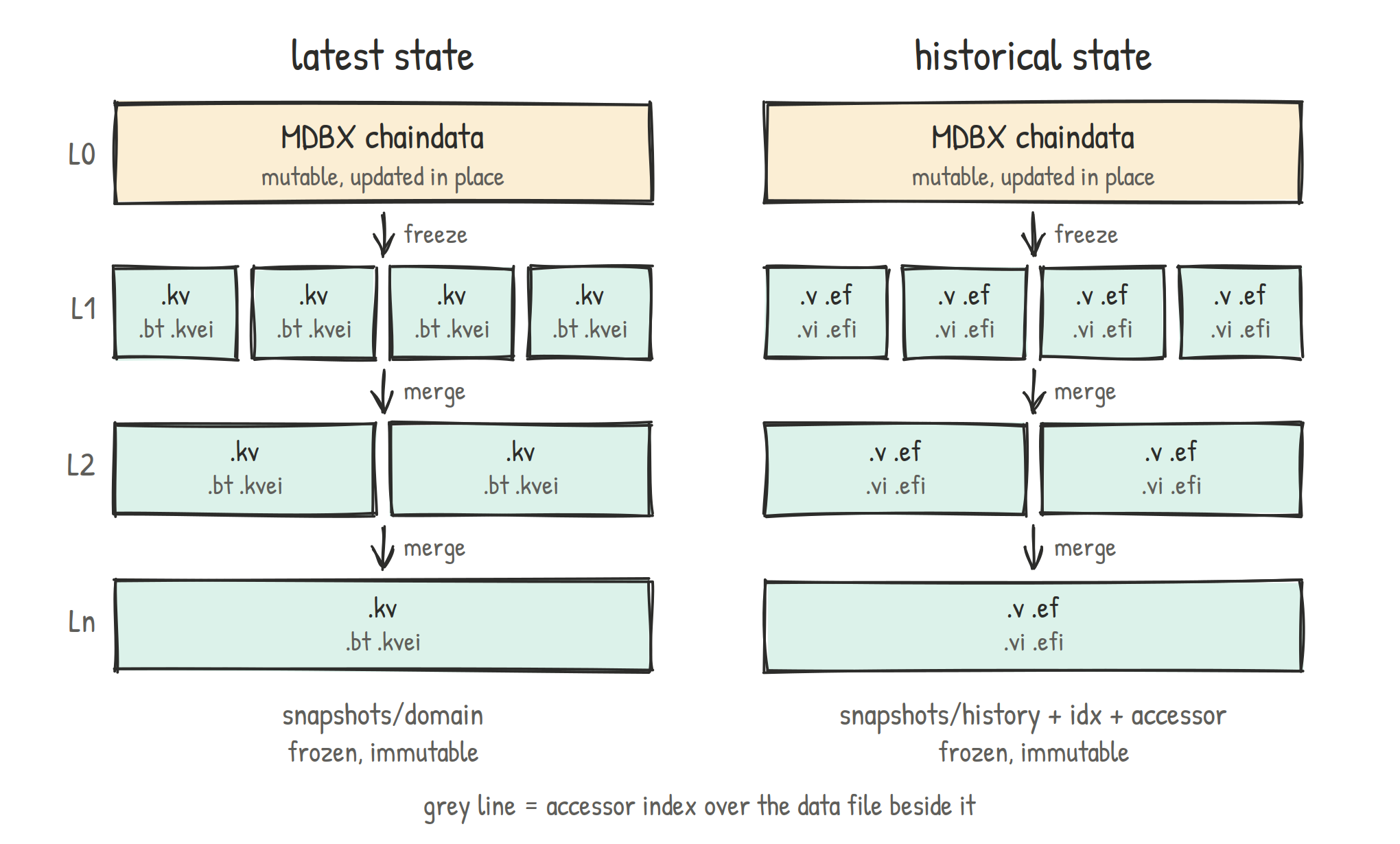

LSM-like structure

L0 - MDBX

  • KV database, transactional, embedded
  • B+-tree
  • mmap based
  • writer serialization
  • reading and writing don't get blocked on each other

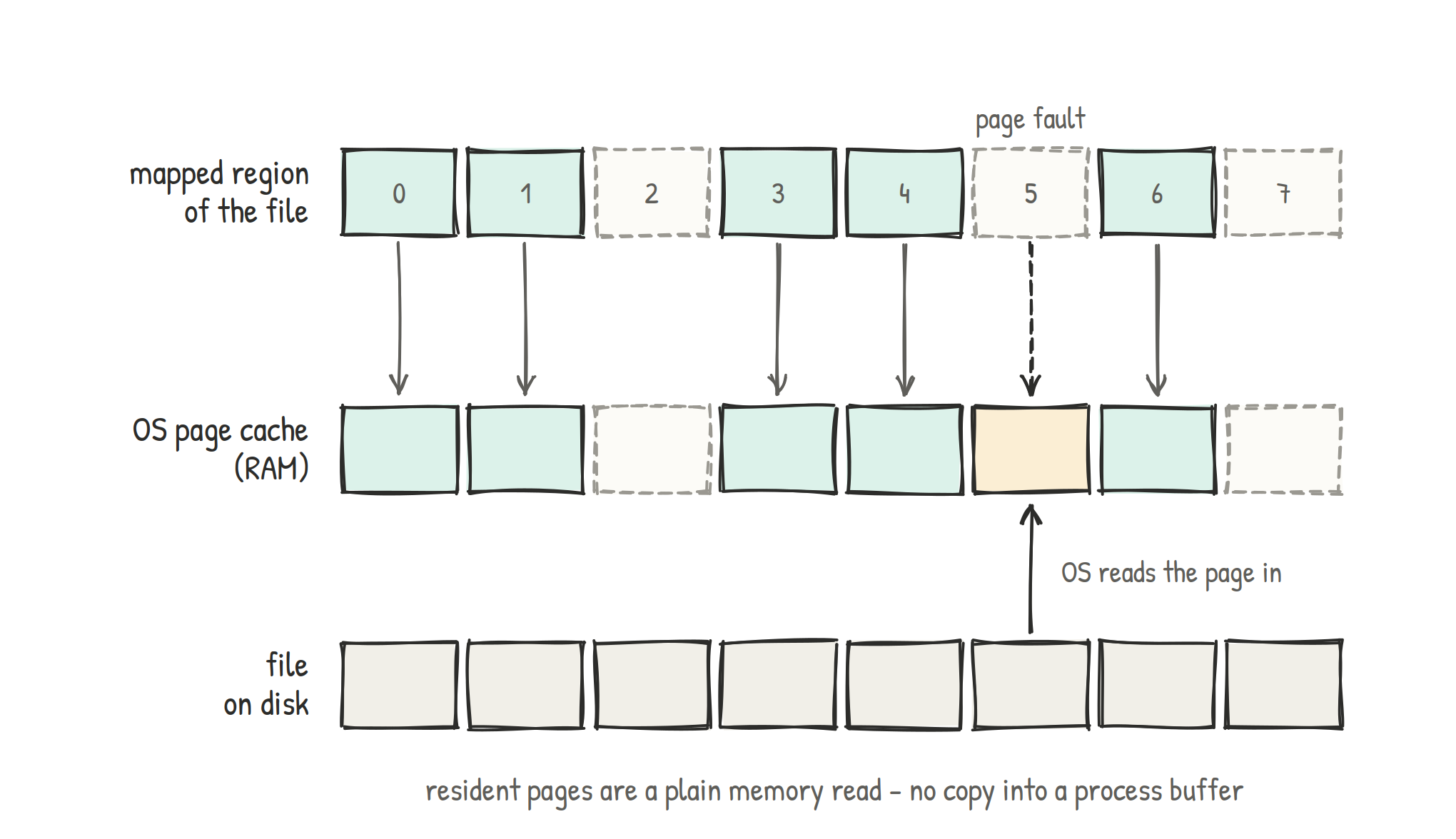

mmap

  • alternative to syscall-based file I/O - read()/write() APIs
  • caching layer = OS page cache
  • used by MDBX and snapshot files
  • hints can be provided with madvise APIs

properties

  • trilemma vs dilemma: LSM-like structure
  • temporality: historical vs latest state
  • chain tip performance
  • distribution
  • SSD/HDD tiering

erigondb's temporal nature

erigondb's temporal nature

  • what is the value of account X on block 10000
  • what were the state changes when transaction index 1 is executed on block 100?

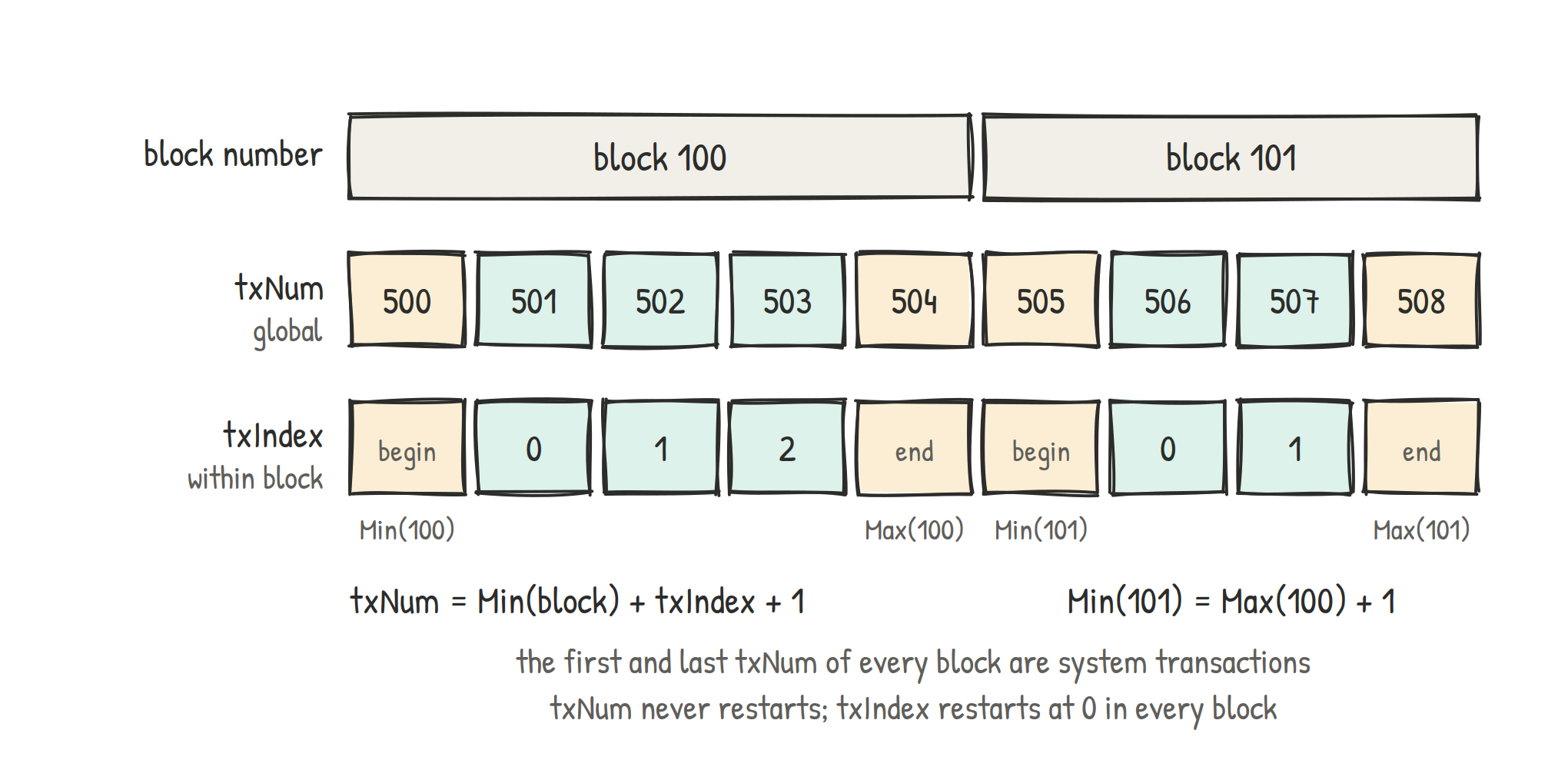

erigondb's temporal nature

  • txnum vs block number
    • impact on historical queries
  • effect on state size
  • user knows about (block number, transaction index)
    • erigondb translates it to txnum

erigondb's temporal nature: historical queries

  • inverted index
    • account address -> list of transaction numbers where account was changed
    • storage slot -> list of transaction numbers where storage slot was changed

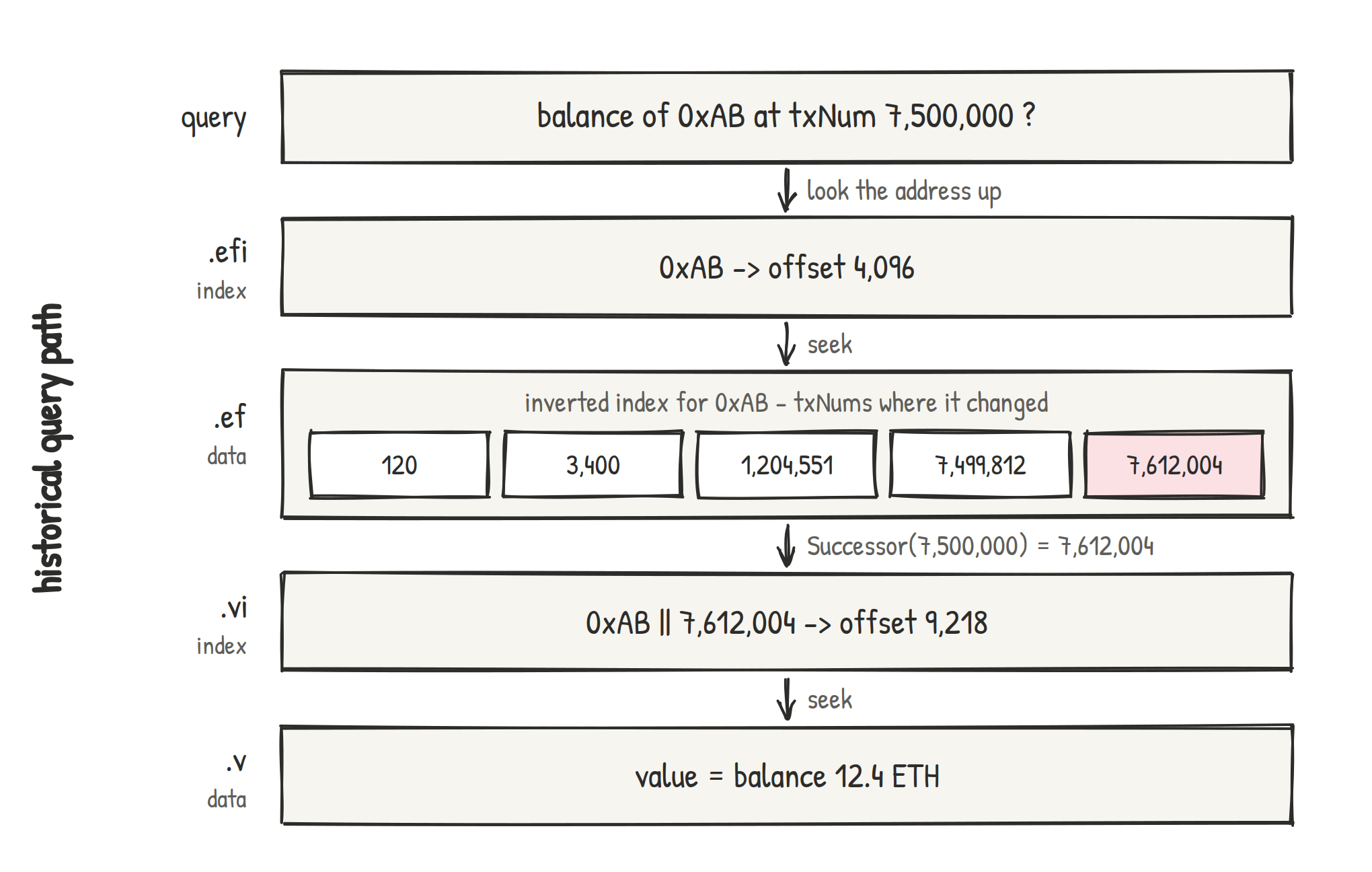

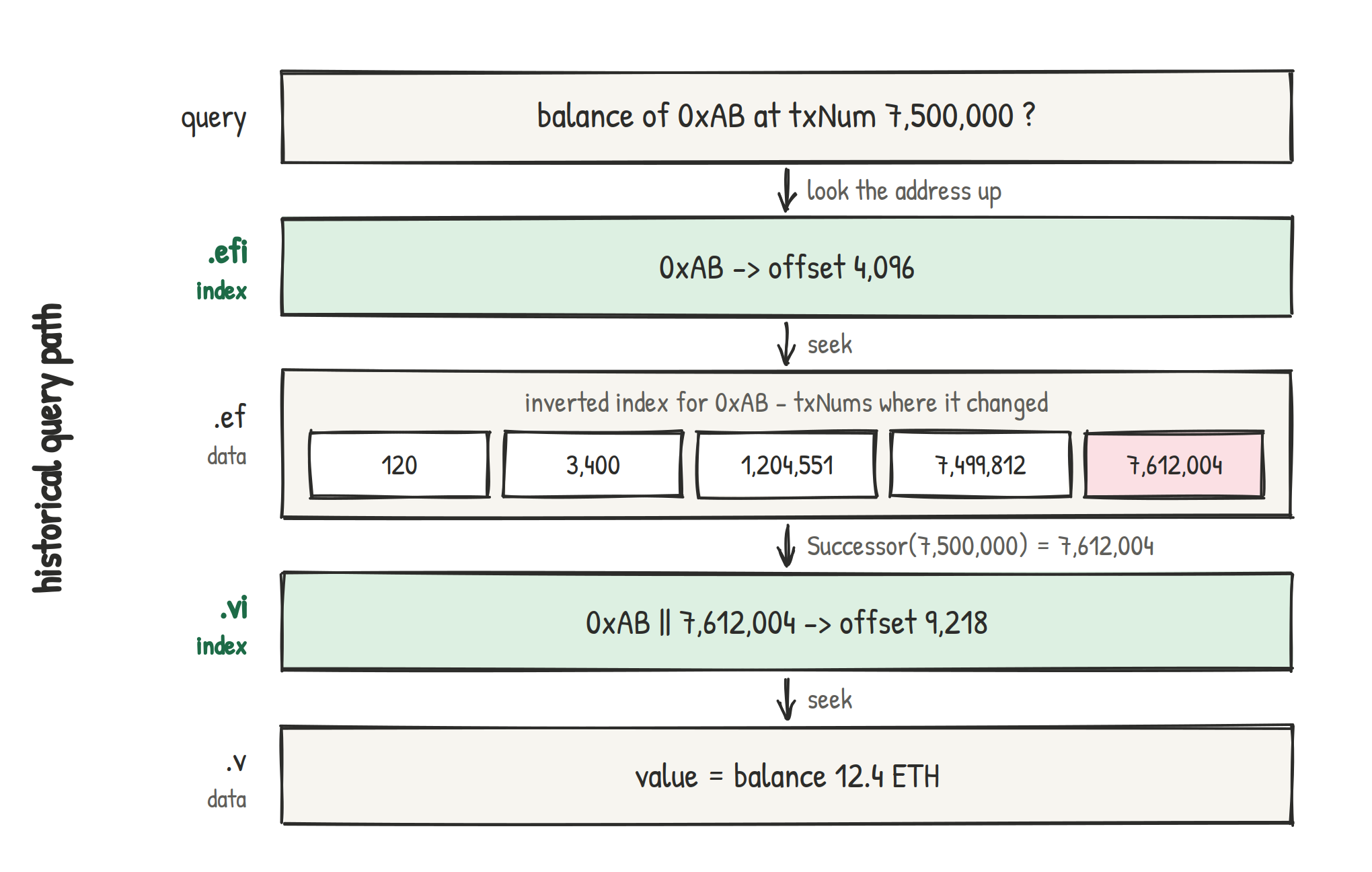

erigondb's temporal nature: historical queries

  • needs to answer: Get(account X, txnum=100)
  • using II: what is the txnum T at which account X change s.t. T>100
  • then: Get(X || T) on the KV store

historical state queries

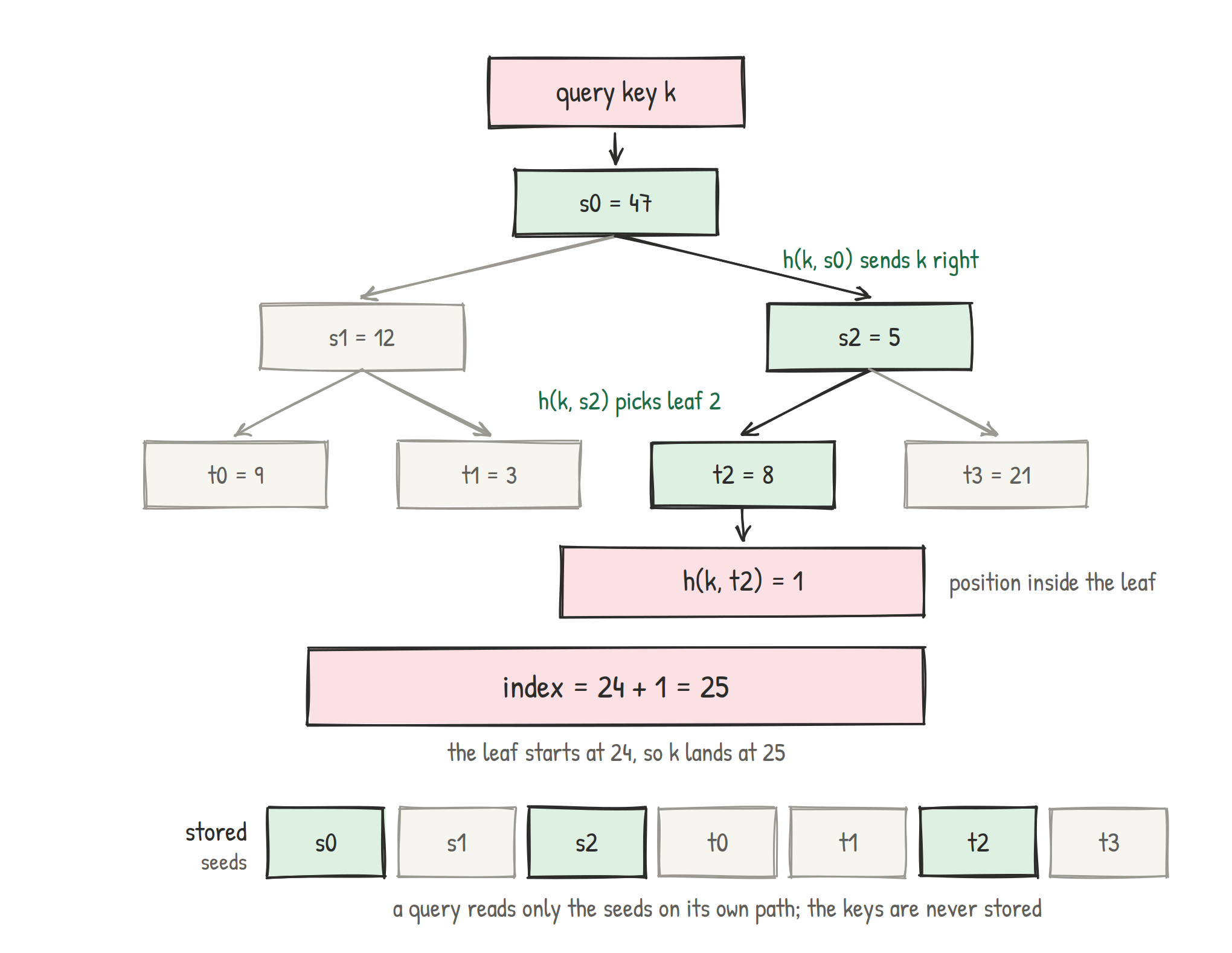

Recsplit

Recsplit

Recsplit

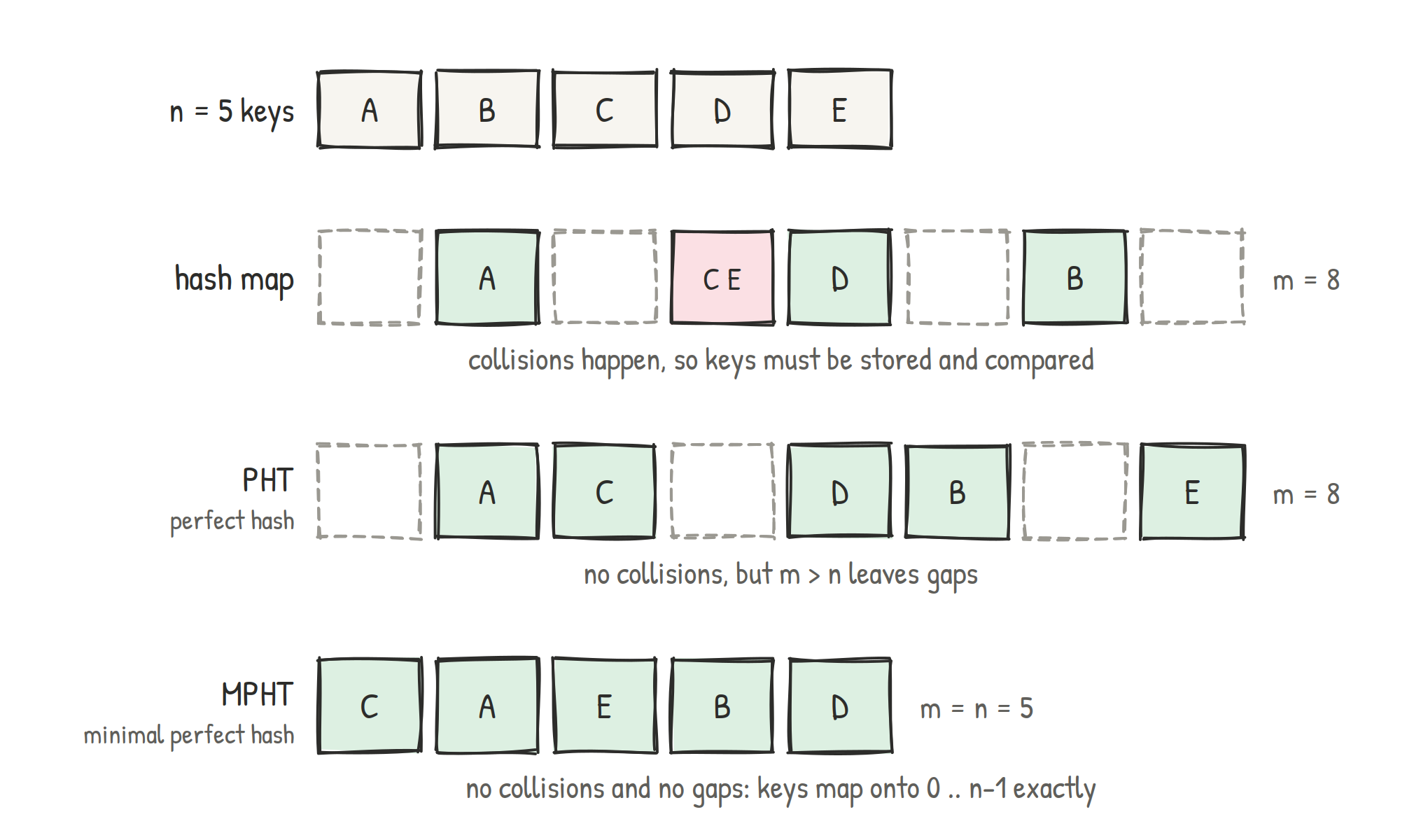

  • minimal perfect hash function (MPHF) algorithm
  • fixed set of keys (can't be changed once constructed)

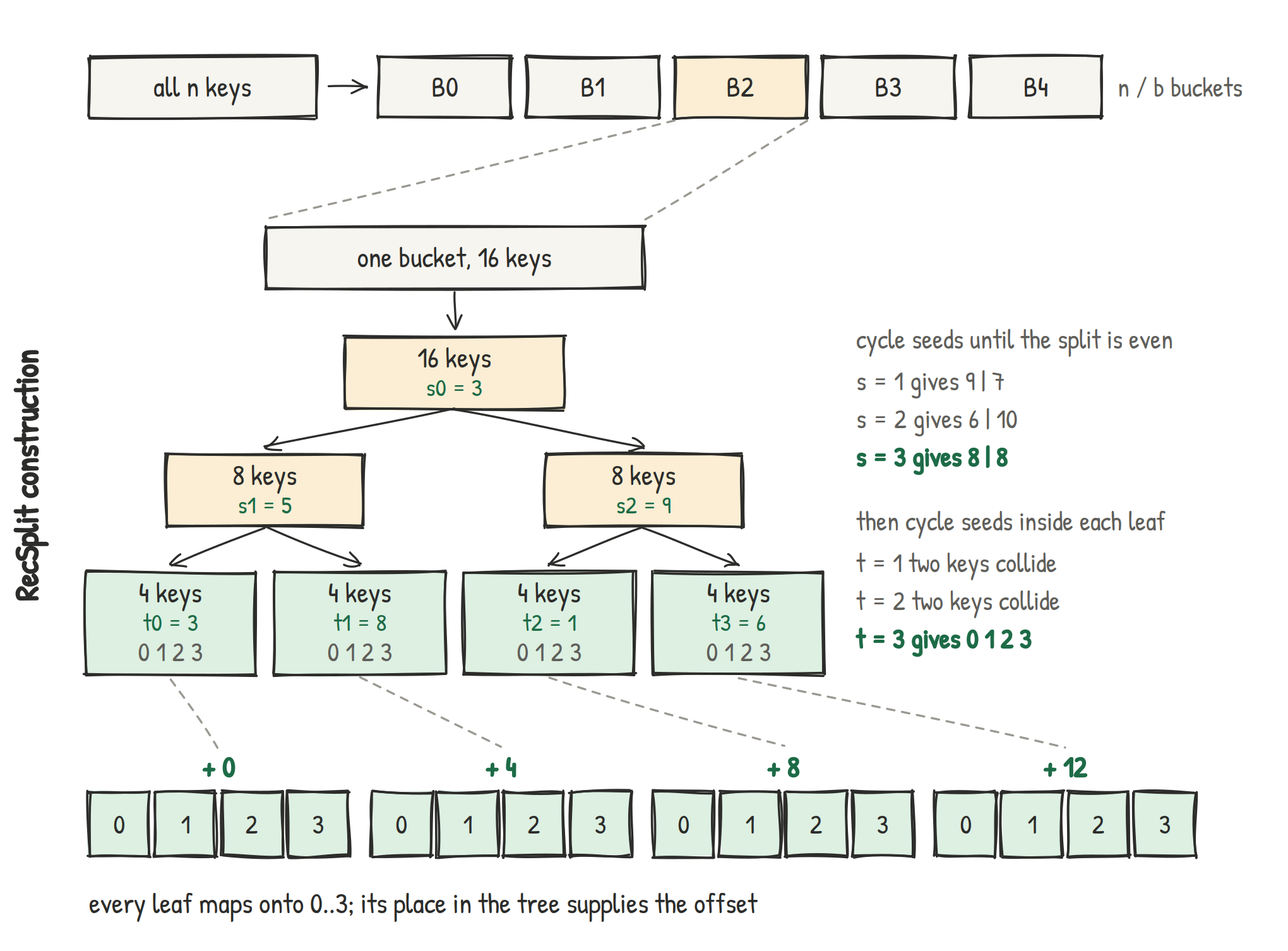

  • uses recursive splitting to map set of keys to first integers without collisions.
  • 1.56 bits per key (theoretical bound is 1.44 bits per key)

Recsplit

  • why recursive splitting?
  • probablity of finding bijection into is ⁿ⁻ⁿ
  • make small => can rely on brute force to find bijection

Recsplit

Recsplit

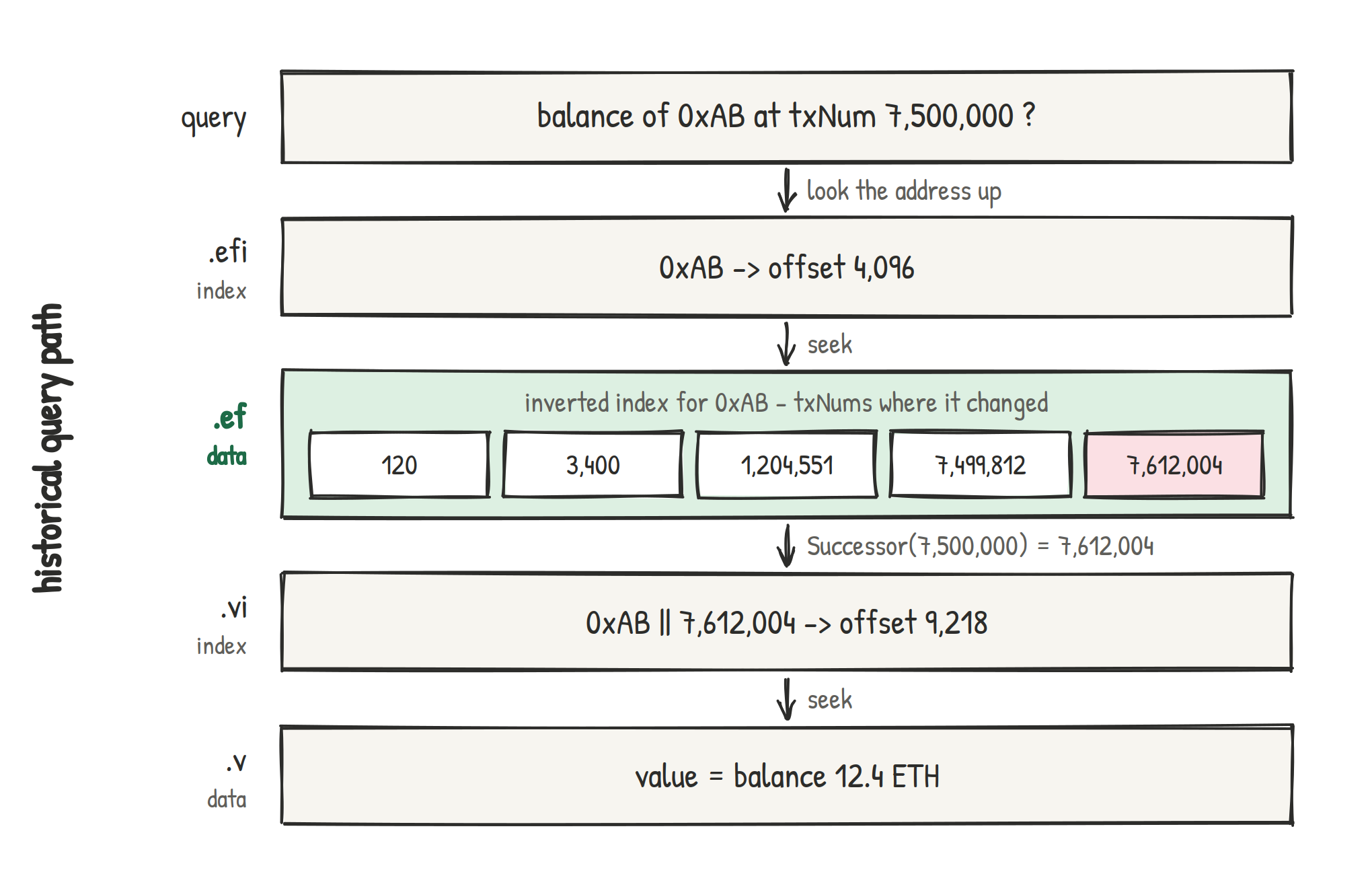

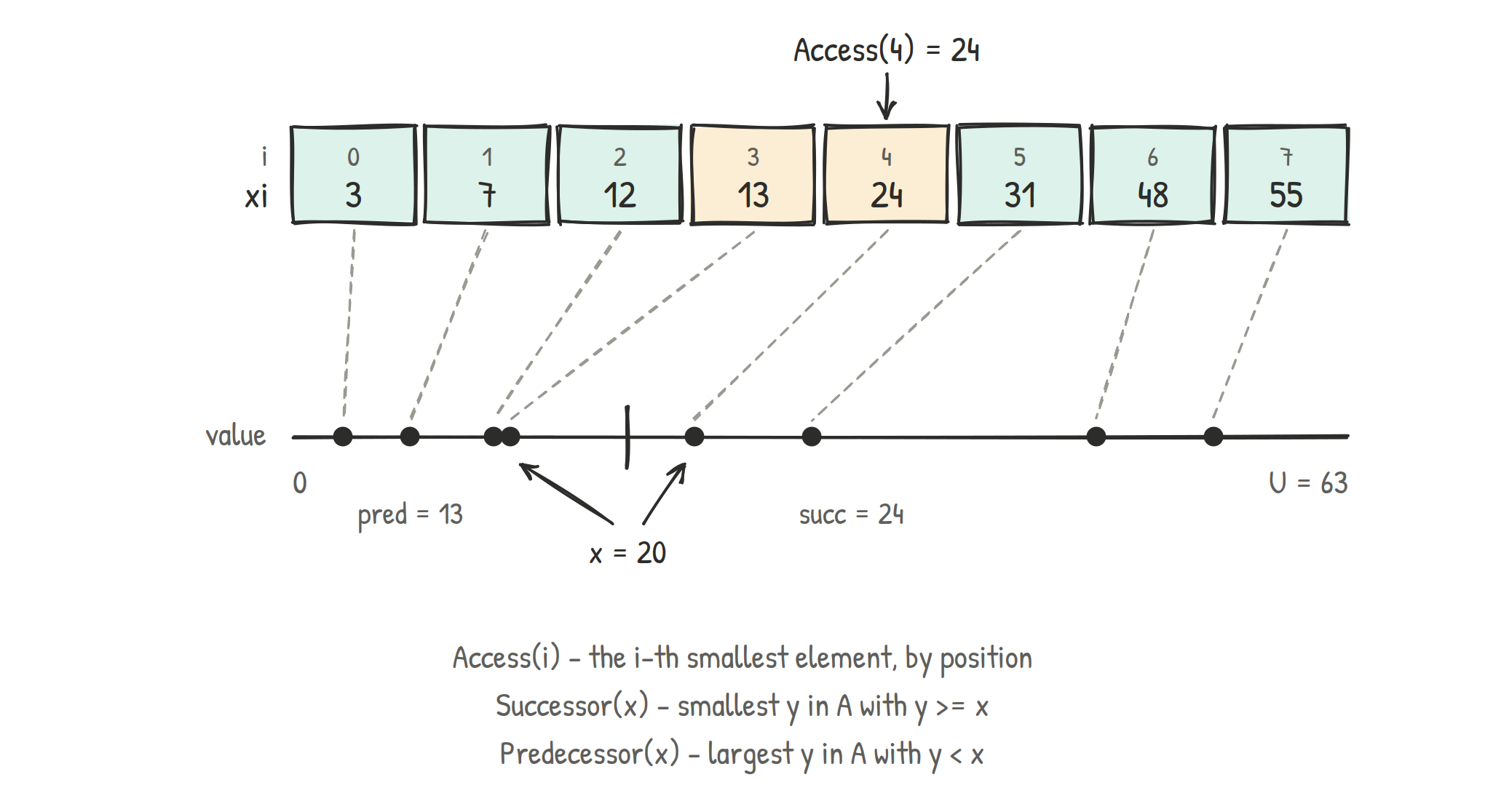

inverted index: elias-fano encoding

inverted index: elias-fano encoding

inverted index: elias-fano encoding

  • succint data structure; near-optimal space
  • exploit fact that consecutive values have same MSBs
  • = 8 values; =63; split into high/low bits at
3 = 000|011      7 = 000|111
12 = 001|100     13 = 001|101
24 = 011|000     31 = 011|111
48 = 110|000     55 = 110|111

inverted index: elias-fano encoding

  • encode high bits separately: write the bucket counts in unary (2,2,0,2,0,0,2,0)
110 110 0 110 0 0 110 0
  • low bits are random: store them as is

inverted index: elias-fano encoding

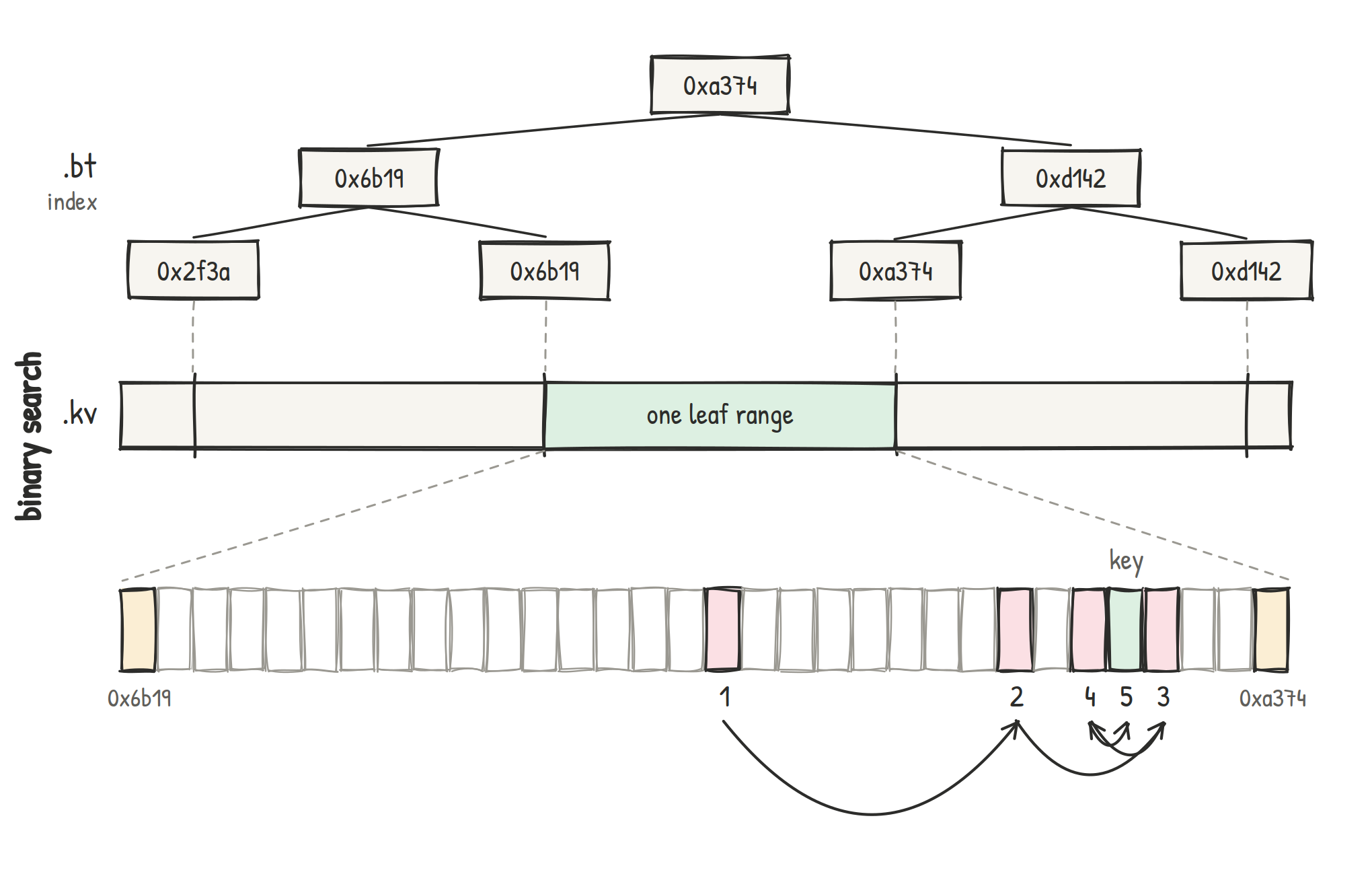

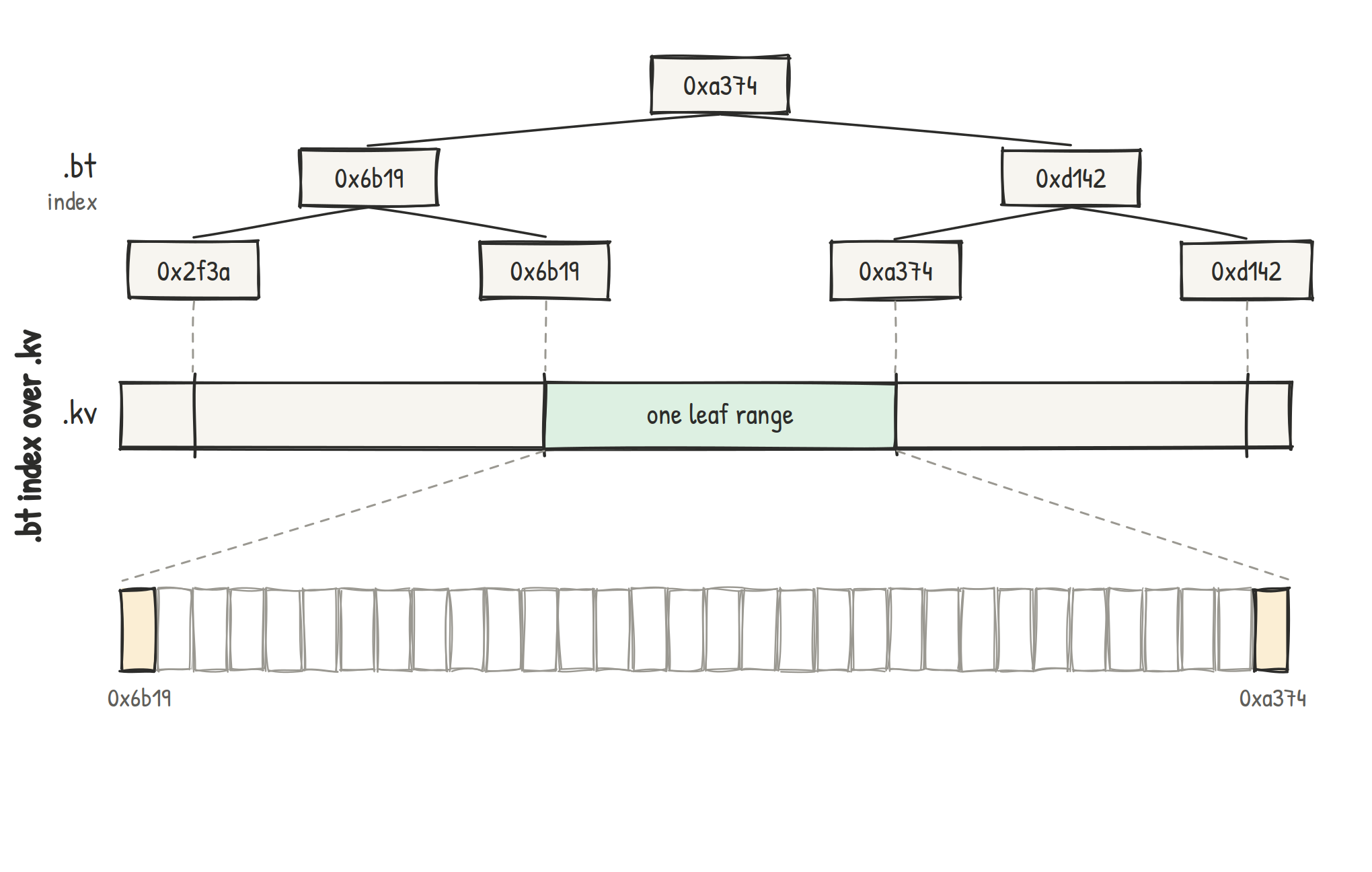

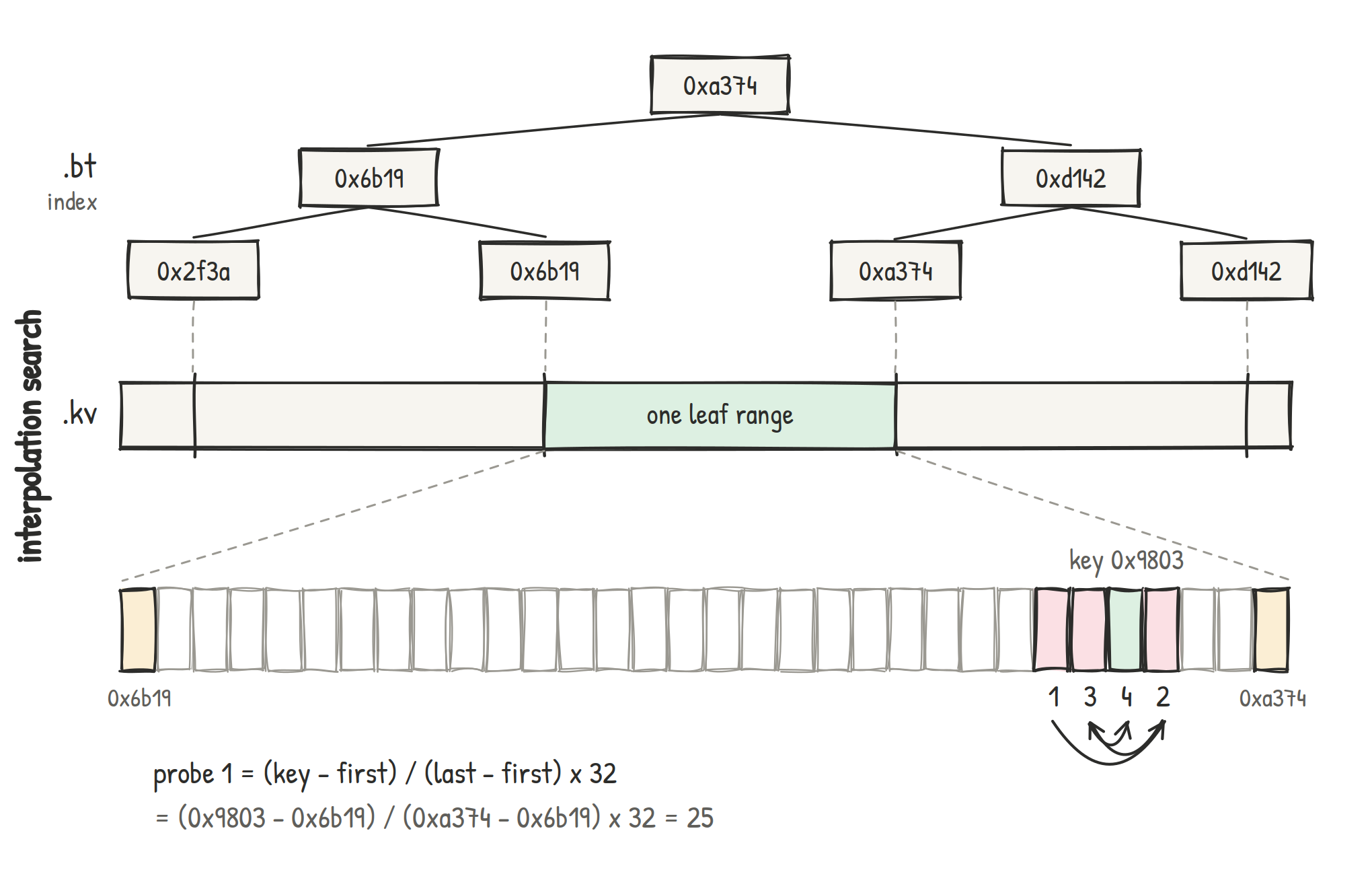

sparse btree index

sparse btree index vs recsplit

  • range queries: "storage slots for an account"
  • 3x smaller than recsplit
    • recsplit offsets are not sorted => incompressible;
    • btree offsets are EF compressible
  • performance similar to recsplit on uniformly distributed data
  • for commitment: lopsided data performs worse

properties

  • trilemma vs dilemma
    • LSM-like structure
  • temporality: historical vs latest state
    • recsplit; sparse btree; elias-fano
  • chain tip performance: node must be able to follow chaintip
    • recsplit; sparse btree
    • pause background db maintenance; caching
  • distribution
  • SSD/HDD tiering

distribution

  • syncing a node
  • snapshot files
    • release cadence
    • sync in hours, rather than days
    • torrent distribution
  • why custom snapshot files?
    • fine tune performance
    • want same snapshot produced on different machines

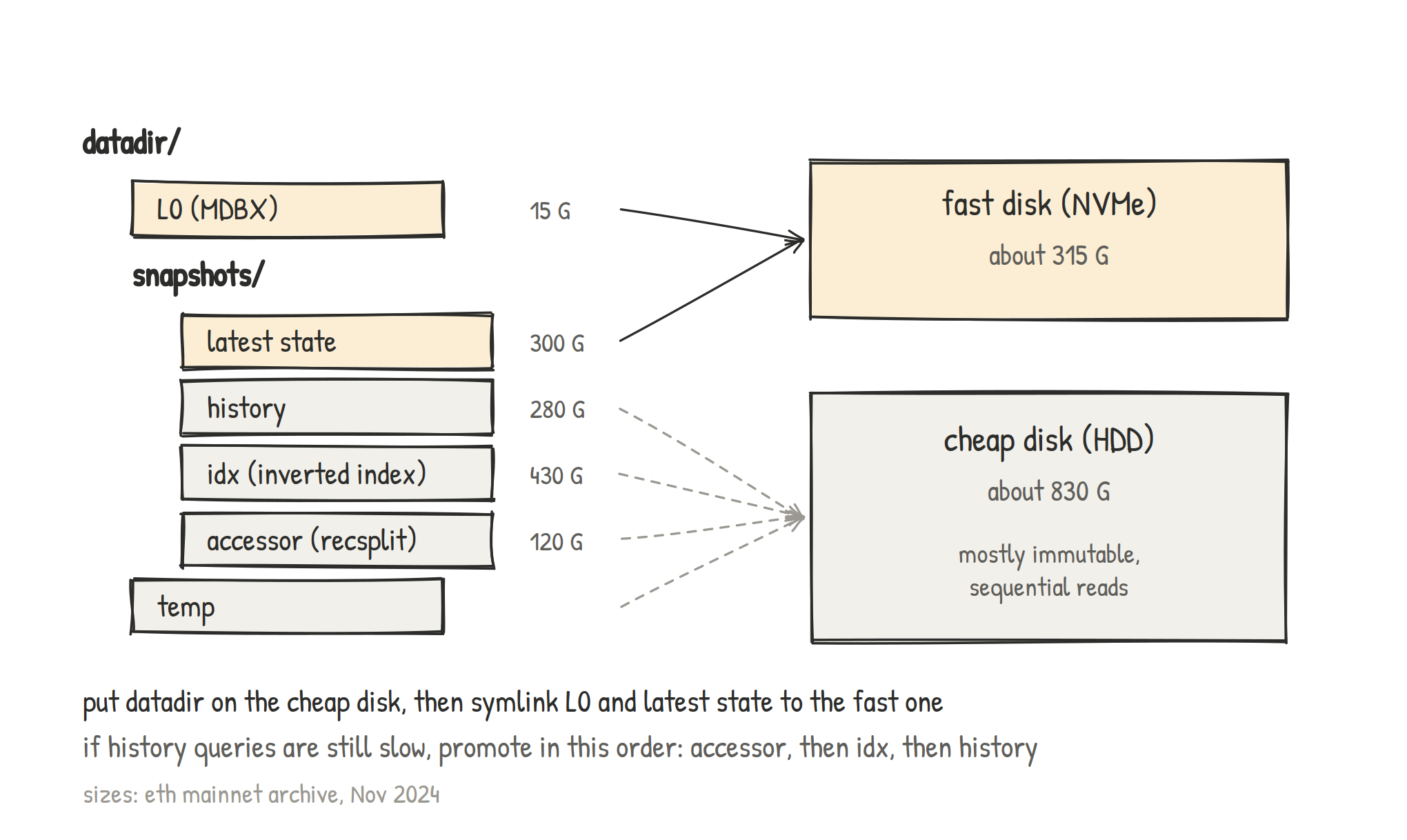

directory layout tricks

THE END

created using marp - the markdown presentation app

_class: big ### what is ethereum? - blockchain: decentralized participation in the network to determine what blocks and transactions to be added next. - adversarial environment - ethereum staking provides a new tool to drive "proper" behavior of participating nodes - bitcoin does decentralization of value transfer; ethereum does decentralization of arbitrary execution (Ethereum Virtual Machine), enabling notion of "programmable money" ---

_class: big ### Recsplit - no need to store keys => non-existence keys still returns some offset - can store keys in values file OR key is derivable from value - to avoid above, use existence filter ---
